ÇATES Silo

Description

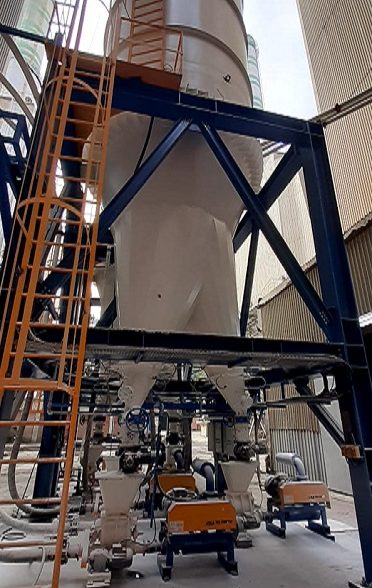

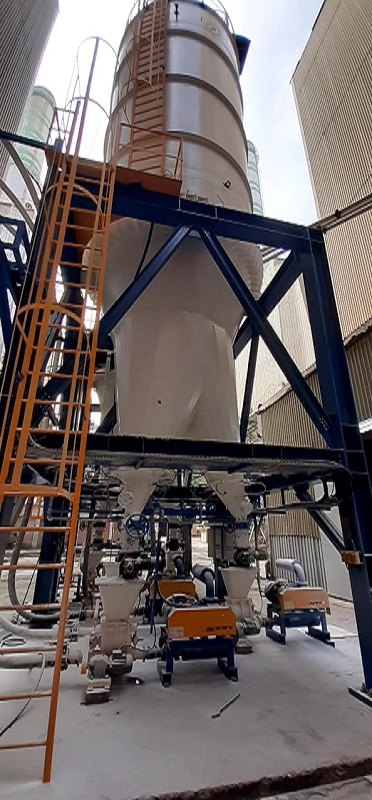

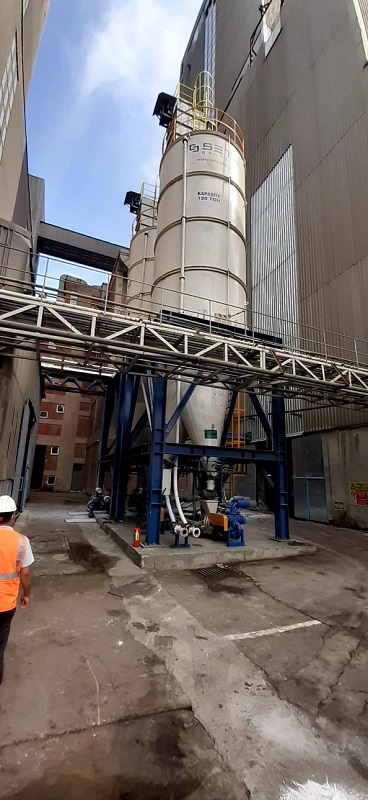

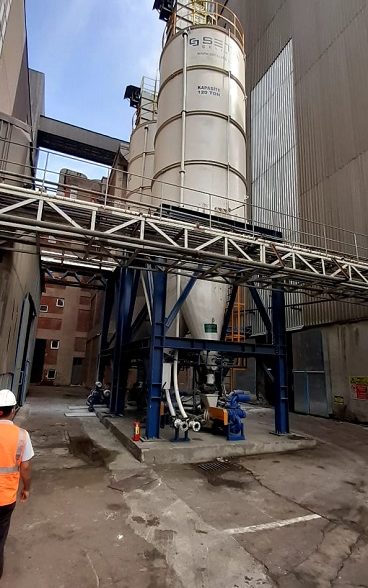

To be built within Çatalağzı Thermal Power Plant in Çatalağzı / Zonguldak, 120 tons Structural steel analysis and design of the capacity silo carrier system were made by us.

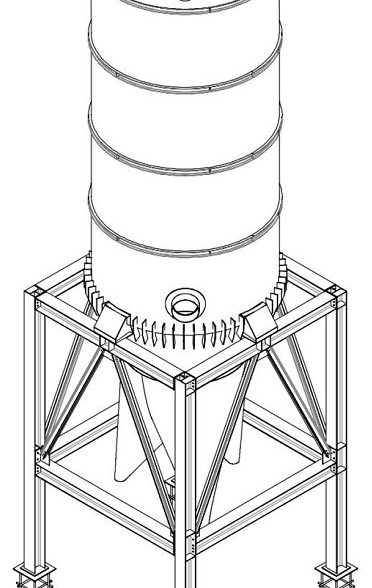

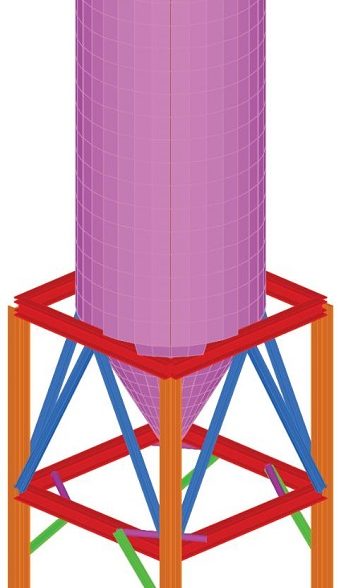

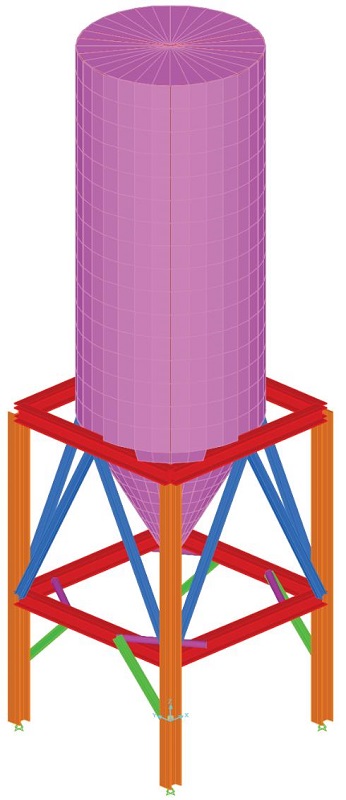

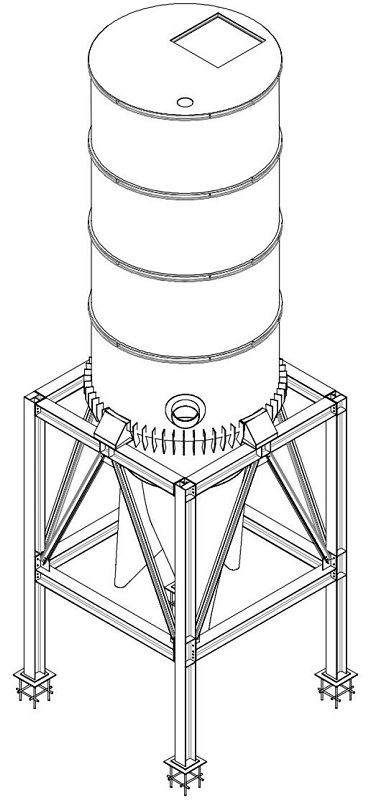

The carrier system consists of 4 columns that rise to 6.75m elevation and have 4.25m x 4.25m axle spacing in plan has been. Horizontal beams at 6.75m and 2.71m elevations connect all columns to each other. These two There are inverted V braces between the beams.

Details

  • Category:
  • Location : Zonguldak / Çatalağzı
  • Project Owner : Aydem Enerji
  • Year : 2020
